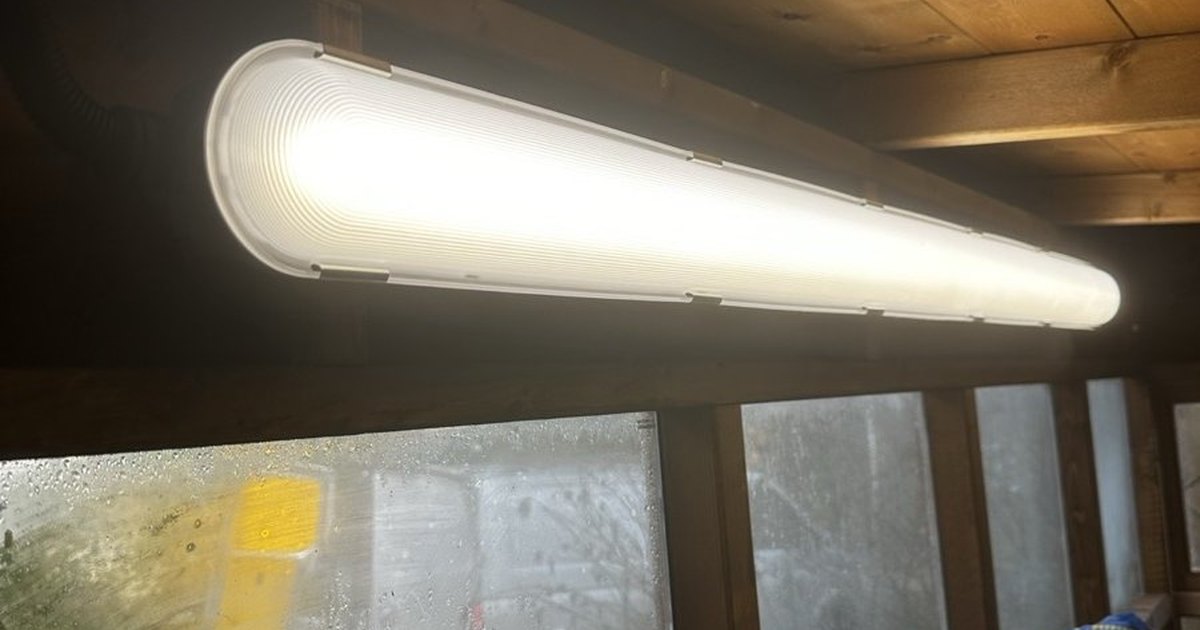

Garage and workshop electrics — SWA submains, sub-boards with own RCBO bank, LED lighting, sockets, 16A commando outlets, EV chargers. Attached and detached garages. Specialist garage electrics for Bath (BA1, BA2) — BS 7671 18th edition, NAPIT-certified, Part P notified. From £380 + VAT @ 20%.
Or WhatsApp: wa.me/447889334849
NAPIT
CHAS
City & Guilds
TrustMark
Part P
BS 7671Garage and workshop electrics — SWA submains, sub-boards with own RCBO bank, LED lighting, sockets, 16A commando outlets, EV chargers. Attached and detached garages. Every job is BS 7671 18th edition certified and Part P notified through NAPIT.
Full service detail on our parent Garage Electrics page.
Bath is a UNESCO World Heritage Georgian conservation city — wiring here often runs through 600mm ashlar stone walls, around lath-and-plaster ceilings and behind original cornice. Cable routes need planning before chases are cut, and Listed-property work means careful coordination with conservation officers.
The rental and holiday-let market is heavy here, so jobs often coincide with a 5-yearly EICR — we can do both as one visit and issue all certs together.
Sister city pages: EICR in Bath · Rewires in Bath
Final price depends on access, cable routes, existing wiring and scope. Survey is free; written quote is fixed. Read the disclaimer below the cards before assuming.
Yes. We've worked in Listed Georgian townhouses across central Bath. The approach is minimal-intervention cable routes (under floorboards, in joist voids, behind existing skirting), surface clip-direct on stone walls where chases would damage fabric, and full coordination with the conservation officer before first-fix. We document everything for the LBC application.
An extension lead from the house is not a permanent installation — it's not BS 7671 compliant for a fixed garage circuit, and it's a real fire risk under load (a single 13A flex feeding a fridge, freezer, lights and tools will overheat). The compliant solution is an SWA armoured submain from the main consumer unit to a sub-board in the garage, with its own RCBO protection. It's the cost difference between £50 of flex and £850 of compliant install — but it's the right answer for safety, insurance and resale.
If the garage has more than 2-3 circuits (lights, sockets, EV charger, motor) then yes — a 4 or 6-way sub-consumer-unit gives proper local isolation, RCBO discrimination and clear labelling. For a small detached garage with just lights and 2 sockets, a single circuit on its own RCBO at the main board is fine.
Free survey, fixed-price written quote, full BS 7671 certification. Call Dan directly on 07889 334849.
